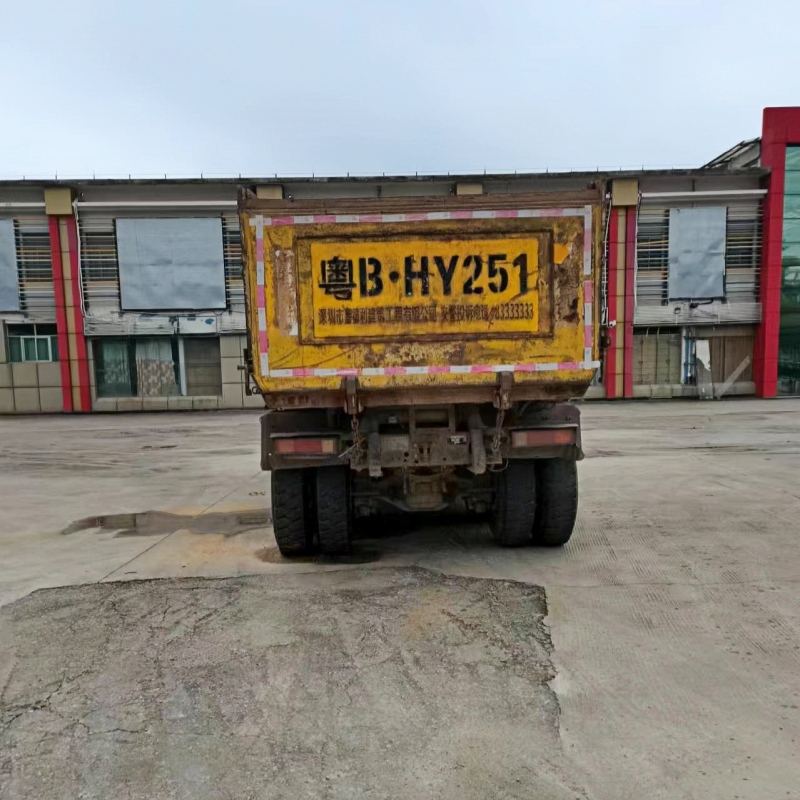

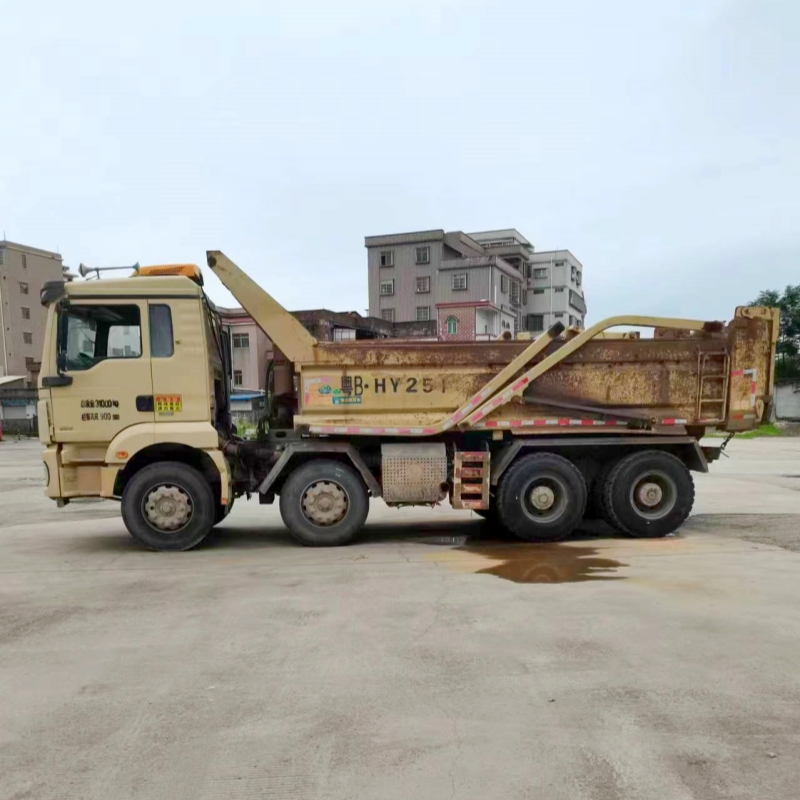

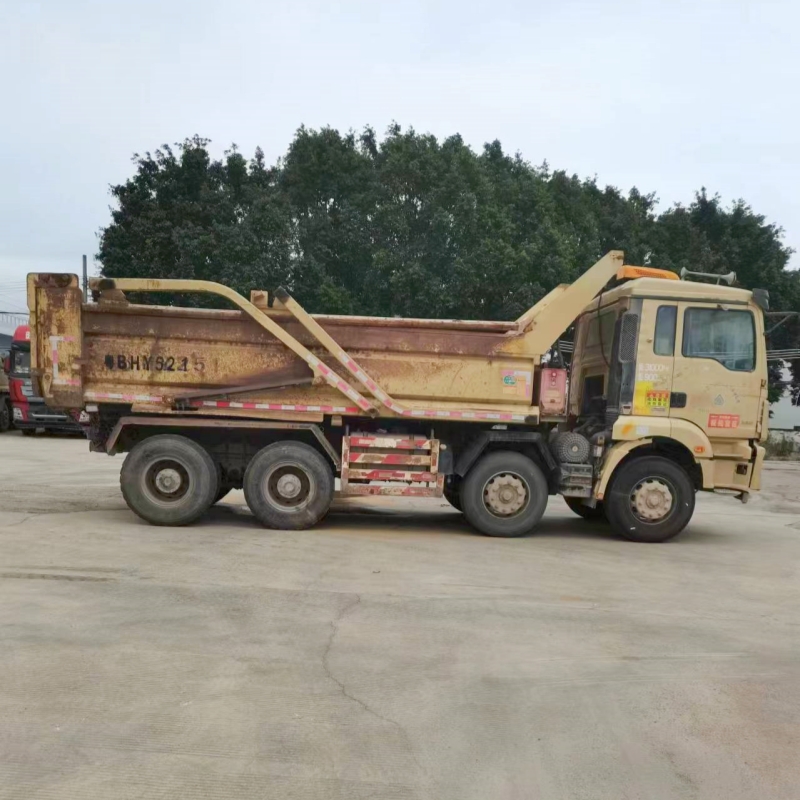

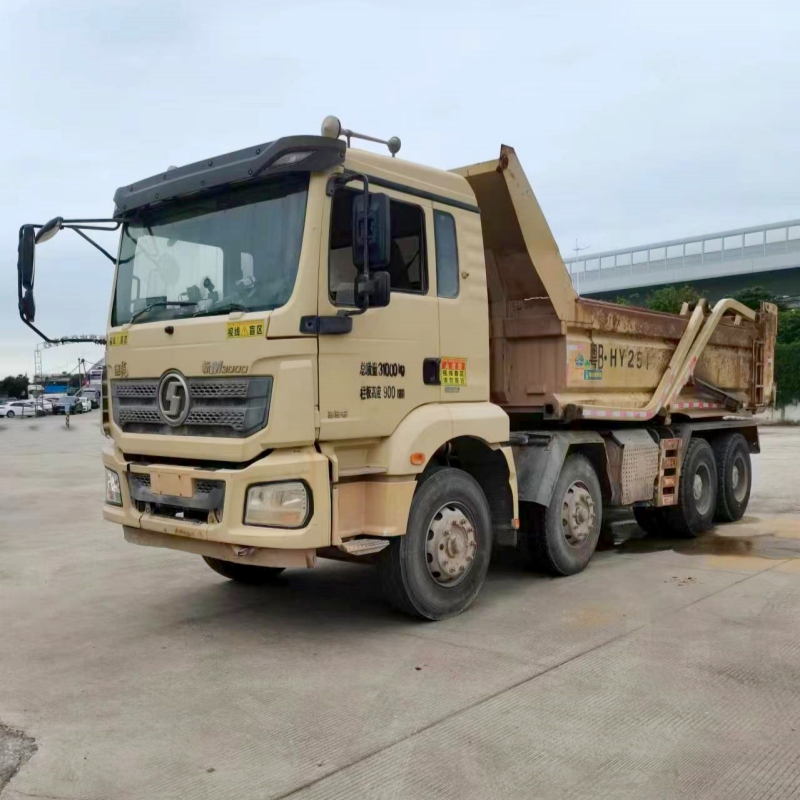

Second Hand Dump Truck SHACMAN 2019 8x4 High Performance Heavy Cargo Tow Truck

Item Number:SHACMAN SX3310MB6J

As the flagship model of the SHACMAN heavy-duty dump truck series, the SX3310MB6J is specially designed for high-intensity transportation conditions. Its power chain combination (Weichai WP10 engine + FAST transmission + Hande axle) achieves a fuel consumption of 8% to 12% lower per 100 kilometers than its competitors under a load of 35 tons.

Model: SHACMAN SX3310MB6J
Size: Standard
Color: Standard
Weight: Standard
MOQ: 1
Origin: China
Packing: Neutral packing
Quality: High quality
Warranty: 1
Model NO.: SHACMAN SX3310MB6J

Contact Us Now

Features

Product Description

Brand: Shaanxi Automobile
Type: Dump Truck
Rated Mass: 15370kg
Total Mass: 31000kg
Curb Mass: 15500kg
Fuel Type: Diesel
Emission Standard: GB17691-2005 National V, GB3847-2005
Number of Axles: 4 Axles
‌Axle load‌: 6500/6500/18000 (two-axle group)
‌Number of tires‌: 12
Approach angle/departure angle: 18/20 degrees
‌Front overhang/rear overhang: 1485/1950, 1525/1950mm
‌Vehicle length: 10210, 10250mm
‌Vehicle width: 2490, 2550mm
‌Vehicle height: 3450mm
‌Cargo compartment length: 7200mm
‌Cargo compartment width: 2300, 2350mm
‌Cargo compartment height: 1130, 1500, 1300, 1400mm
‌Maximum speed: 80km/h
‌Number of passengers in the cab: 2 people
